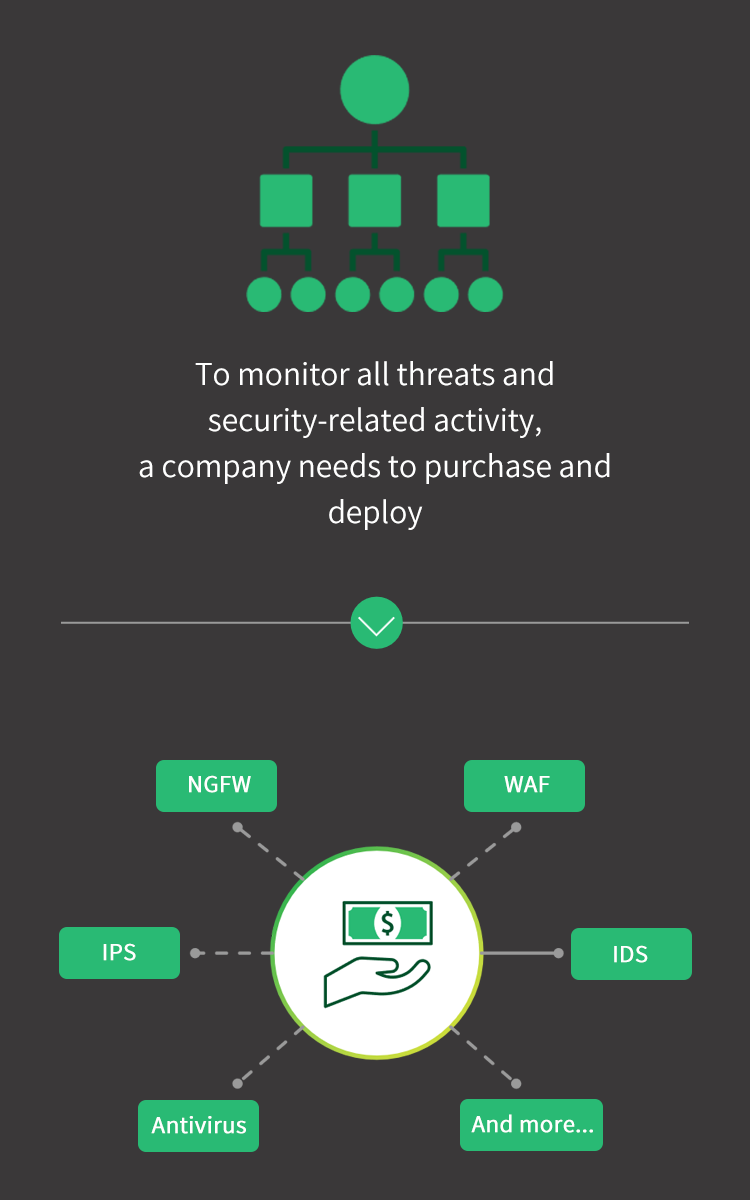

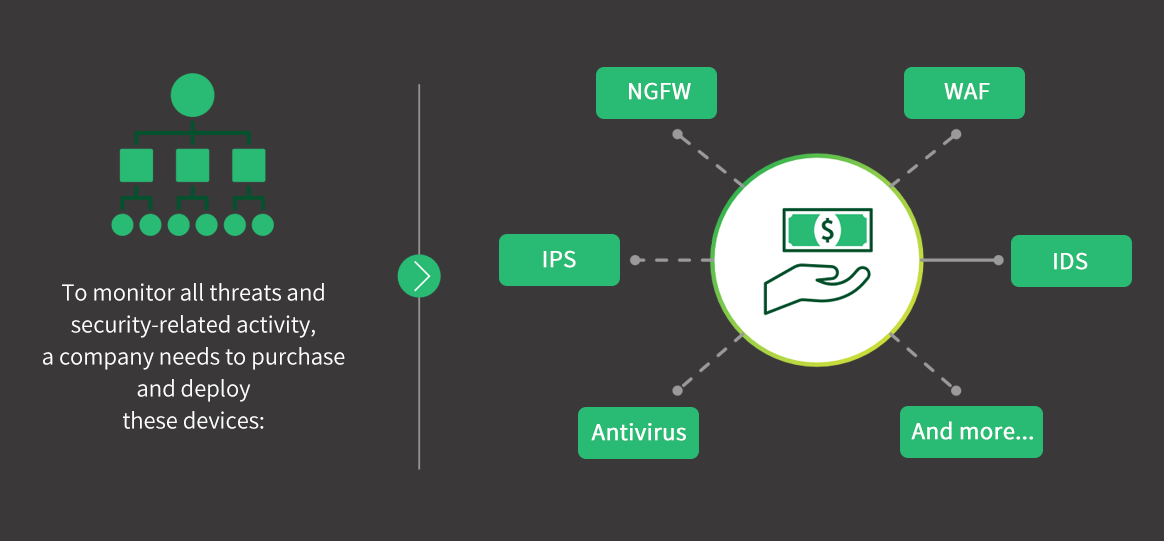

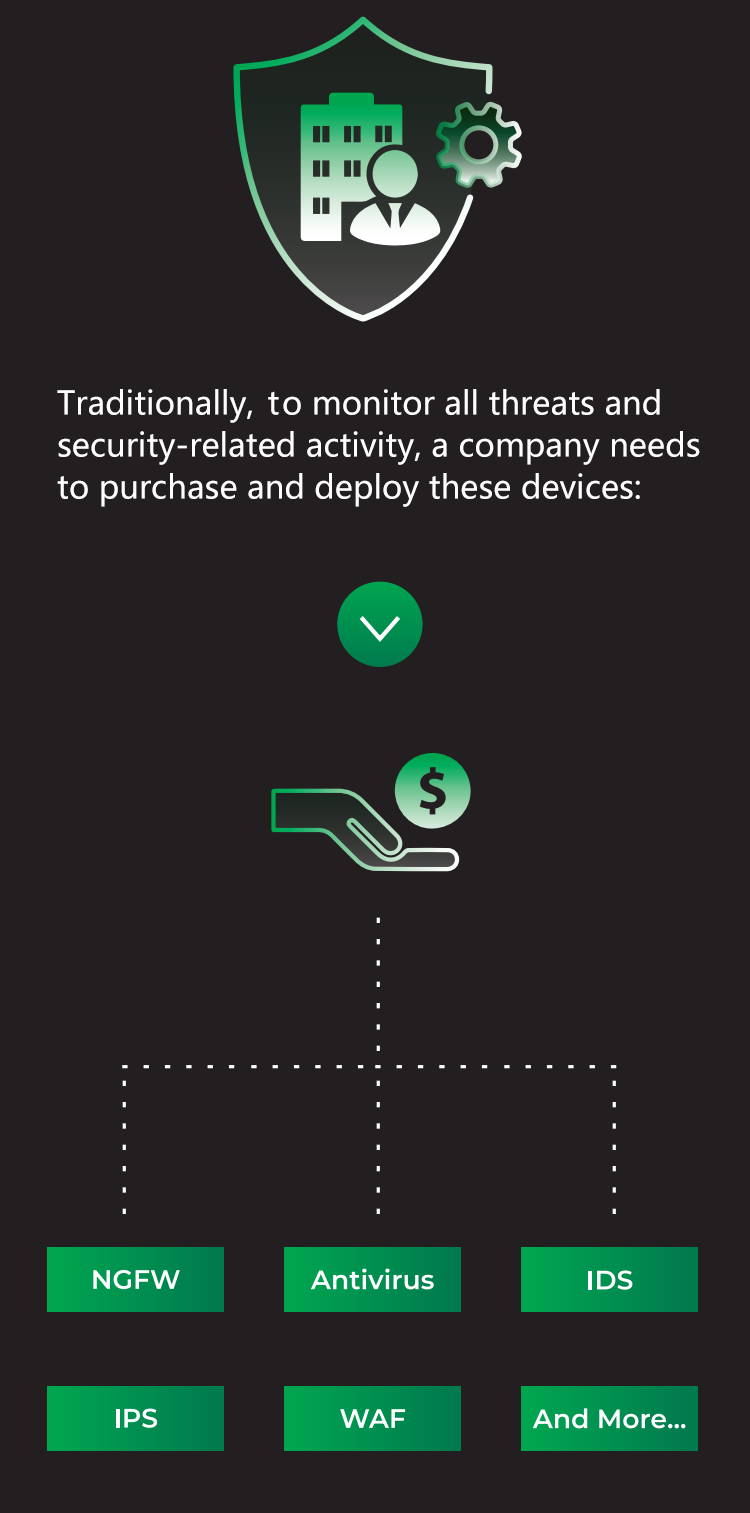

Traditionally, your organization's network needs to be protected by several different devices, usually costly.
Previously, the network security protection is expansive and contained too many point solutions. Now, with one single device—X-Shield Cyber Guard—you can attain all features including antivirus, content filtering, email and web filtering, and more.
▶ Weighs only 0.8kg
▶ Light & space-saving design
▶ Powered by an extensive security database
▶ 14k+ IPS signatures, 4 million+ antivirus signatures, & 50k+ threat intelligence indicators for comprehensive protection.
▶ Firewall, Antivirus, Intrusion defense, Web application protection, URL filtering
▶ Anti-DDoS
▶ Blacklist/whitelist, Traffic Shaping, VPN, etc.
▶ High availability
Traffic flow control policies / firewall policies IPS/IDS, Anti-DDoS, Anti-virus Protection

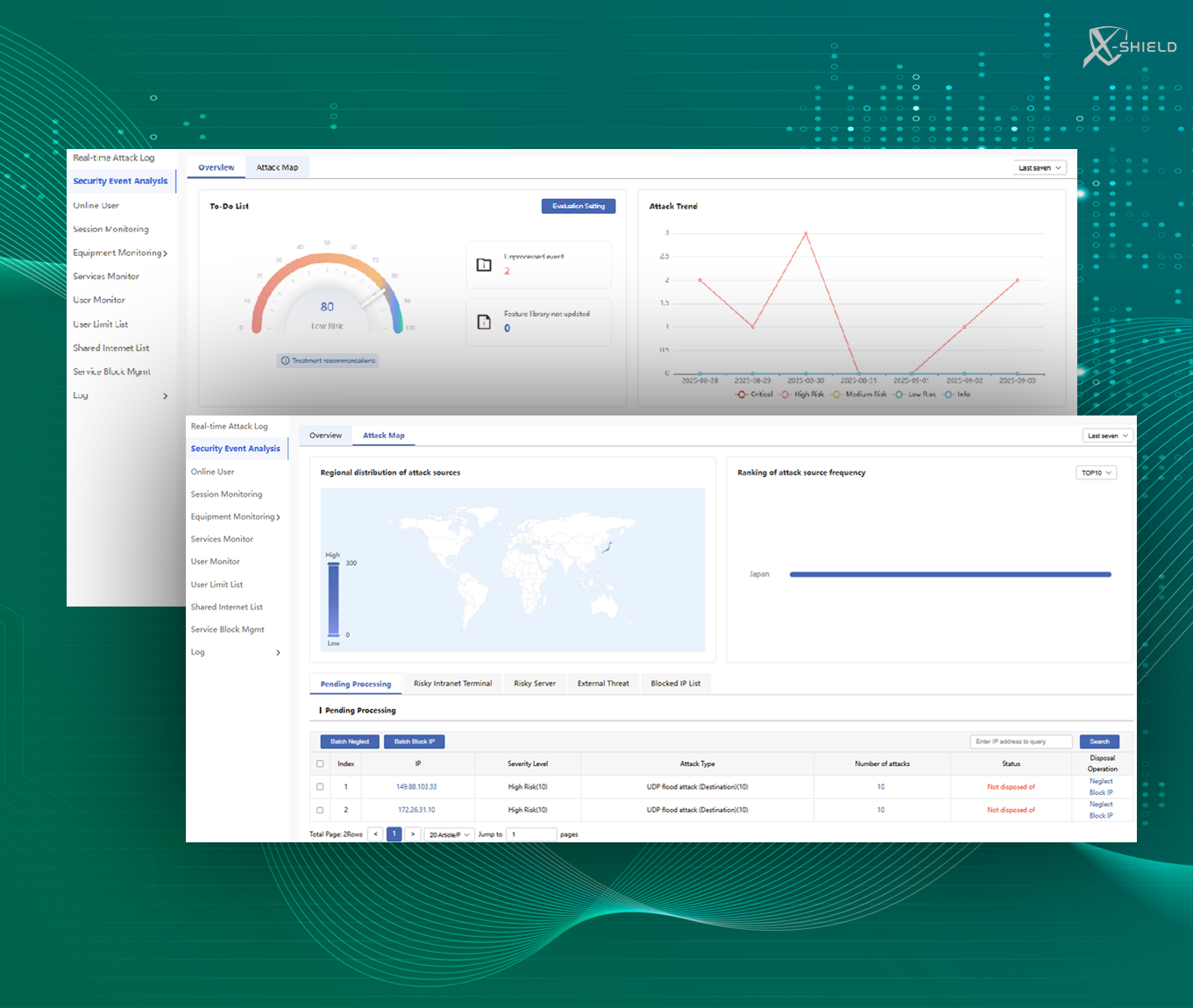

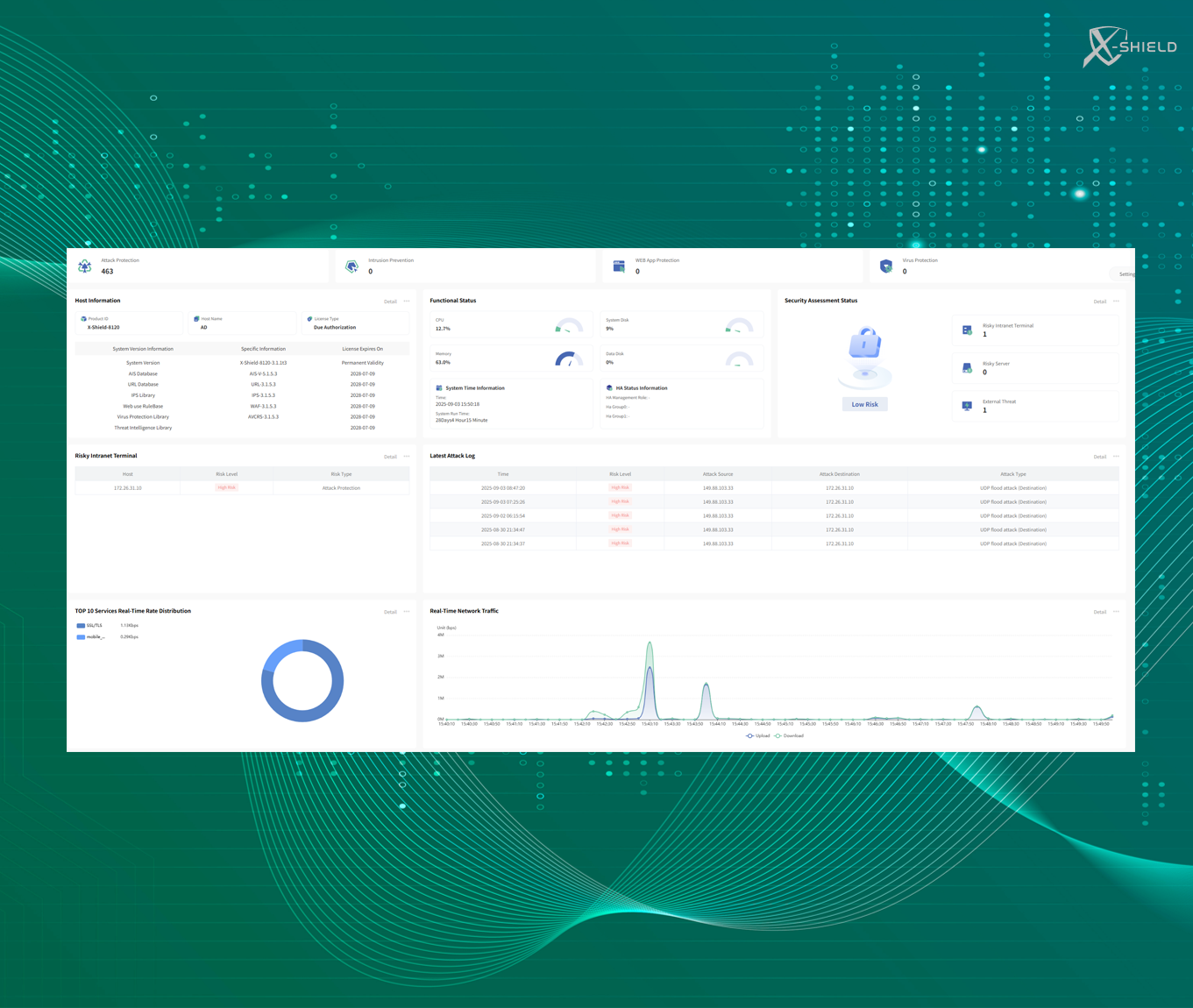

Dashboard showing real time security posture. Multi-channel notification for suspicious activity or policy violations. Centralized logs for audits and compliance.
Role-based access control (RBAC) and optional Multi-Factor Authentication (MFA).
IPsec, SSL, PPTP and L2TP for encrypted remote access and point-to-point / site-to-site tunnels.
Dynamic path selection for optimal network performance. Prioritize or block specific apps.
Benefits and Capabilities of X-Shield UTM
Protects against various threats like exploits.
Ensures uninterrupted business operations by safeguarding critical systems.
Easy to be set up as an all-in-one device.
Optimizes network performance through intelligent traffic management.
Assists in meeting industry and government compliance standards.
Reduces security expenses and cost-friendly for SMEs.
Category |
Model |
8105 |
8106 |
8110 |
Performance |
Recommended Bandwidth |
50 - 100 Mbps |
200 Mbps |
100 Mbps |
Recommended Concurrent Users |
200 |
200 |
400 |
|
Large Packet Throughput |
1 Gbps |
2 Gbps |
3 Gbps |
|
Hardware |
Platform Architecture |
ARM-Marvell |
ARM-Marvell |
ARM-Marvell |
Hardware Model |
NM15 (Desktop) |
RK3568(Desktop) |
NM59 |
|
CPU |
Marvell 88F3720 Dual-core @ 1.0GHz |
RK3568 Quad-core @ 1.6-1.8GHz |
Marvell 88F3720 Dual-core @ 1.0GHz |
|
Memory |
2 GB DDR4 |
4 GB DDR4 |
4 GB DDR4 |
|
Flash Storage |
4 GB eMMC |
8 GB eMMC |
8 GB eMMC |
|
Expansion |
TF Card (Built-in), Optional HDD |
Optional HDD |
TF Card (Built-in), Optional HDD |
|
Interfaces |
Data Ports |
4x GE RJ45, 2x GE Combo (SFP/RJ45) |
5x GE RJ45 |
8x GE RJ45, 2x SFP (1G) |
Console Port |
1x RS232 (RJ45) |
1x RS232 (RJ45) |
1x RS232 (RJ45) |
|
USB Ports |
1x USB 2.0 |
2x USB 2.0 |
1x USB 3.0 |
|
Bypass |
N/A |
N/A |
1x Electrical Bypass Pair (ETH0/1) |
|
Reset Button |
N/A |
Yes |
Yes |
|
Physical |
Dimensions ( WxHxD ) |
279×44×152mm (11") |
210×140×30mm |
440×44×330mm |
440×44×263mm (19") |
||||
Weight |
3.0 kg (11") |
0.8 kg |
3.92 kg |
|
3.92 kg (19") |
||||
Environmental |
Operating Temperature |
0°C to 40°C |
0°C to 40°C |
0°C to 40°C |
Storage Temperature |
-25°C to 70°C |
-40°C to 70°C |
-40°C to 70°C |
|
Humidity |
5% to 90% non-condensing |
5% to 90% non-condensing |
5% to 90% non-condensing |
|
Protection Rating |
IP20 |
IP20 |
IP20 |
|
Power |
Input Voltage (AC) |
100~240V AC |
100~240V AC |
100~240V AC |
Input Voltage (DC) |
N/A |
192-288V DC (Optional) |
N/A |
|
Max Power Consumption |
25W |
25W |
25W |
|
Redundancy |
N/A |
Optional (DC) |
Yes (1+1 AC) |
|
Reliability |
MTBF |
≥100,000 Hours |
≥100,000 Hours |
≥100,000 Hours |
Cooling |
N/A |
Active Fan |
N/A |
|
Others |
Environmental Certification |
RoHS Compliant |
RoHS Compliant |
RoHS Compliant |
